TGM-010P3RL (TGM-P3 series) is a pin-to-pin alternative to the ST010P3RL ( ST0x0P3 series) Surface Mount Push-Pull Low Power Transformer, Designed for use with MAXIM MAX845 IC
Push-Pull Low Power Transformer
- Designed for use with Maxim MAX 845 monolithic oscillator/power drivers with 3.3V or 5.0V power source
- PFA Insulation ( Triple Insulated Wire)
- Used in SMPS Push-Pull Topology
- Operating temperature:-40 ℃~+85℃
- Switching Frequency: 250 kHz-1 MHz
- 8 Pin SMD Package
- Up to 1 Watt
Product detail:
| Shareway Part Number | Trader Part Number | Topology | Geometry | Turns Ratio | Isolation Vrms | Primary Inductance/uH | Pri DCR | | ET Constant | Cw/w | Chipset |
| ST010P3 | TGM-010P3RL | Push-Pull | Toroidal | Pri: Sec=1:1:1 | 500 | 240 | 0.6 ohm Max | | 5.5 V-us Min | 12 pF Max | Maxim MAX845 |
| ST020P3 | TGM-020P3RL | Push-Pull | Toroidal | Pri: Sec=1:1:0.75 | 500 | 240 | 0.6 ohm Max | | 5.5 V-us Min | 12 pF Max | Maxim MAX845 |
| ST030P3 | TGM-030P3RL | Push-Pull | Toroidal | Pri: Sec=1:1:1.5 | 500 | 240 | 0.6 ohm Max | | 5.5 V-us Min | 12 pF Max | Maxim MAX845 |
| ST040P3 | TGM-040P3RL | Push-Pull | Toroidal | Pri: Sec=1:1:1.3:1.3 | 500 | 240 | 0.6 ohm Max | | 5.5 V-us Min | 12 pF Max | Maxim MAX845 |
| ST050P3 | TGM-050P3RL | Push-Pull | Toroidal | Pri: Sec=1:1:1:1:1 | 500 | 240 | 0.6 ohm Max | | 5.5 V-us Min | 12 pF Max | Maxim MAX845 |
| | | | | | | | | | | | |
Dimensions:
Schematic:
Type A & Type B

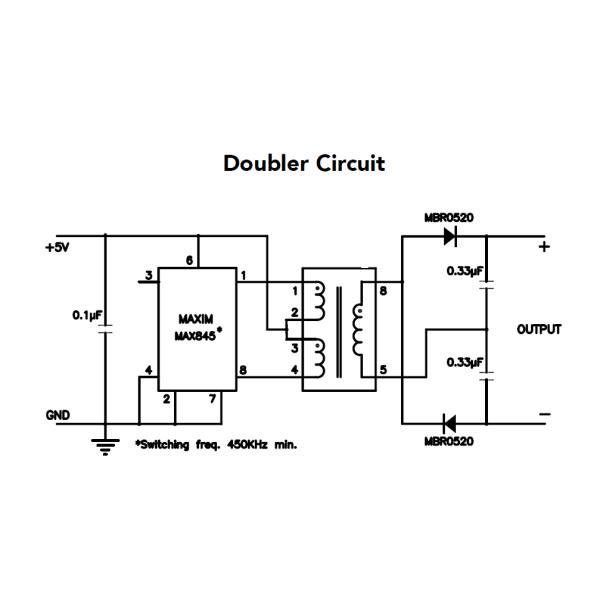

Typical Application:
